Inheritance diagram for LSST::M1M3::SS::ReportServerStatusBusList:

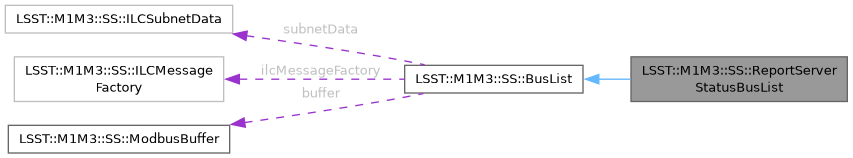

Collaboration diagram for LSST::M1M3::SS::ReportServerStatusBusList:

[legend]

Public Member Functions
	ReportServerStatusBusList (ILCSubnetData subnetData, ILCMessageFactory ilcMessageFactory)

void	buildBuffer () override
	(Re)-build message send to FPGA.

Public Member Functions inherited from LSST::M1M3::SS::BusList
	BusList (ILCSubnetData subnetData, ILCMessageFactory ilcMessageFactory)

int32_t	getLength ()

uint16_t *	getBuffer ()

int32_t *	getExpectedHPResponses ()

int32_t *	getExpectedFAResponses ()

int32_t *	getExpectedHMResponses ()

virtual void	update ()
	Called when update to buffer is required.

Additional Inherited Members
Protected Member Functions inherited from LSST::M1M3::SS::BusList
void	startSubnet (uint8_t subnet)
	Writes command to start a subnet message on the bus.

void	endSubnet ()
	Ends subnet.

Protected Attributes inherited from LSST::M1M3::SS::BusList
ILCSubnetData *	subnetData
	Status of messages on a subnet.

ILCMessageFactory *	ilcMessageFactory

ModbusBuffer	buffer
	Buffer holding data send to FPGA Command FIFO.

int32_t	expectedHPResponses [HP_COUNT]

int32_t	expectedFAResponses [FA_COUNT]

int32_t	expectedHMResponses [HP_COUNT]

int32_t	subnetStartIndex

Member Function Documentation

◆ buildBuffer()

void ReportServerStatusBusList::buildBuffer ( )

overridevirtual

(Re)-build message send to FPGA.

Should be called when external conditions changes - e.g. when an ILC is disabled.

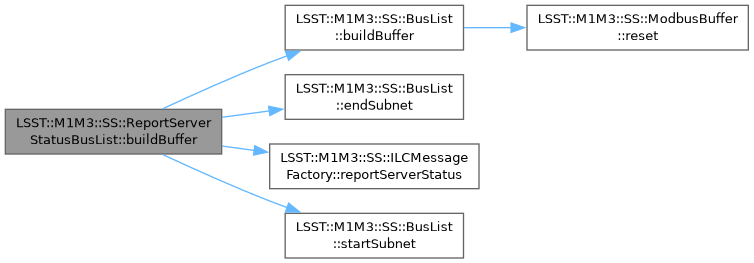

Here is the call graph for this function:

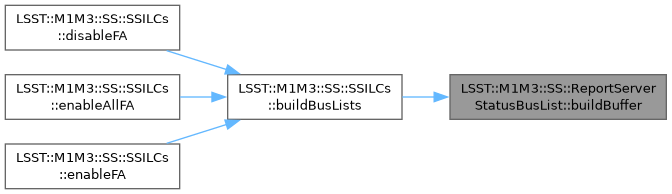

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
