LSST::M1M3::SS::ModbusBuffer Class Reference

Utility class for Modbus buffer management. More...

#include <ModbusBuffer.h>

Public Member Functions
int32_t	getIndex ()
void	setIndex (int32_t index)
void	incIndex (int32_t inc)
void	skipToNextFrame ()
uint16_t *	getBuffer ()
void	set (int32_t index, uint16_t data)
void	setLength (int32_t length)
int32_t	getLength ()
void	reset ()
	Set empty buffer.
bool	endOfBuffer ()
bool	endOfFrame ()
std::vector< uint8_t >	getReadData (int32_t length)
	Returns read data from buffer.
uint16_t	calculateCRC (int32_t length)
	Calculate Modbus from written data.
uint16_t	readLength ()
int32_t	readI32 ()
uint8_t	readU8 ()
uint16_t	readU16 ()
uint32_t	readU32 ()
uint64_t	readU48 ()
float	readSGL ()
std::string	readString (int32_t length)
uint16_t	readCRC ()
double	readTimestamp ()
void	readEndOfFrame ()
void	writeSubnet (uint8_t data)
void	writeLength (uint16_t data)
void	writeI8 (int8_t data)
void	writeI16 (int16_t data)
void	writeI24 (int32_t data)
void	writeI32 (int32_t data)
void	writeU8 (uint8_t data)
void	writeU16 (uint16_t data)
void	writeU32 (uint32_t data)
void	writeSGL (float data)
void	writeCRC (int32_t length)
void	writeDelay (uint32_t delayMicros)
void	writeEndOfFrame ()
void	writeSoftwareTrigger ()
void	writeTimestamp ()
void	writeTriggerIRQ ()
void	writeWaitForRx (uint32_t timeoutMicros)
void	pullModbusResponse (uint16_t request, uint64_t &beginTs, uint64_t &endTs, std::vector< uint8_t > &data)
	Fills buffer with data from response, returns start and end timestamps.

Static Public Member Functions
static uint16_t	calculateCRC (std::vector< uint8_t > data)
	Calculate Modbus CRC16.
static uint8_t	readInstructionByte (uint16_t instruction)
	Reads instruction byte from FPGA FIFO.
static uint16_t	writeByteInstruction (uint8_t data)
	Return data item to write to buffer.

Detailed Description

Utility class for Modbus buffer management.

Provides function to write and read cRIO FIFO (FPGA) Modbus buffers.

8bit data are stored as 16bit values. Real data are left shifted by 1. Last bit (0, transmitted first) is start bit, always 1 for ILC communication.

Member Function Documentation

calculateCRC() [1/2]

uint16_t LSST::M1M3::SS::ModbusBuffer::calculateCRC

(

int32_t

length

)

Calculate Modbus from written data.

Parameters

length

buffer length

Returns

calculated Modbus CRC16

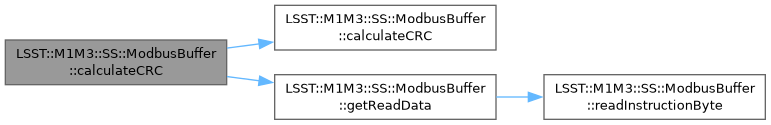

Here is the call graph for this function:

calculateCRC() [2/2]

uint16_t LSST::M1M3::SS::ModbusBuffer::calculateCRC ( std::vector< uint8_t > data )

static

Calculate Modbus CRC16.

Parameters

data	data for CRC16 calculation

Returns

calculated Modbus CRC16

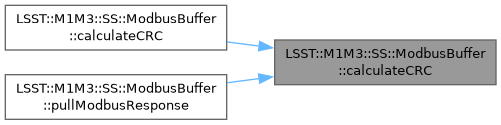

Here is the caller graph for this function:

getReadData()

std::vector< uint8_t > LSST::M1M3::SS::ModbusBuffer::getReadData

(

int32_t

length

)

Returns read data from buffer.

Parameters

length

data length

Returns

read data

Here is the call graph for this function:

Here is the caller graph for this function:

pullModbusResponse()

void LSST::M1M3::SS::ModbusBuffer::pullModbusResponse	(	uint16_t	request,
		uint64_t &	beginTs,
		uint64_t &	endTs,
		std::vector< uint8_t > &	data )

Fills buffer with data from response, returns start and end timestamps.

Checks for CRC.

Throws exception on error.

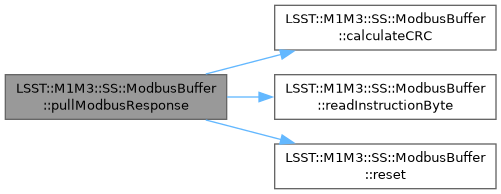

Here is the call graph for this function:

readInstructionByte()

static uint8_t LSST::M1M3::SS::ModbusBuffer::readInstructionByte ( uint16_t instruction )

inlinestatic

Reads instruction byte from FPGA FIFO.

Parameters

instruction

instruction from Response FIFO.

Returns

byte written by the instruction. Start bit is removed.

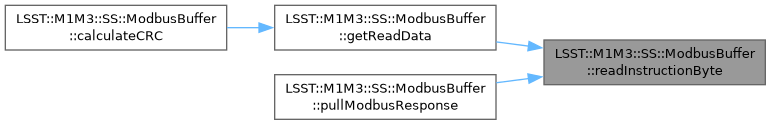

Here is the caller graph for this function:

writeByteInstruction()

static uint16_t LSST::M1M3::SS::ModbusBuffer::writeByteInstruction ( uint8_t data )

inlinestatic

Return data item to write to buffer.

Parameters

data	data to write.

Returns

16bit for command queue.

---

The documentation for this class was generated from the following files:

• Utility/ModbusBuffer.h
• Utility/ModbusBuffer.cpp
