LSST::M1M3::SS::ForceComponent Class Reference

Abstract parent class of all force components. More...

#include <ForceComponent.h>

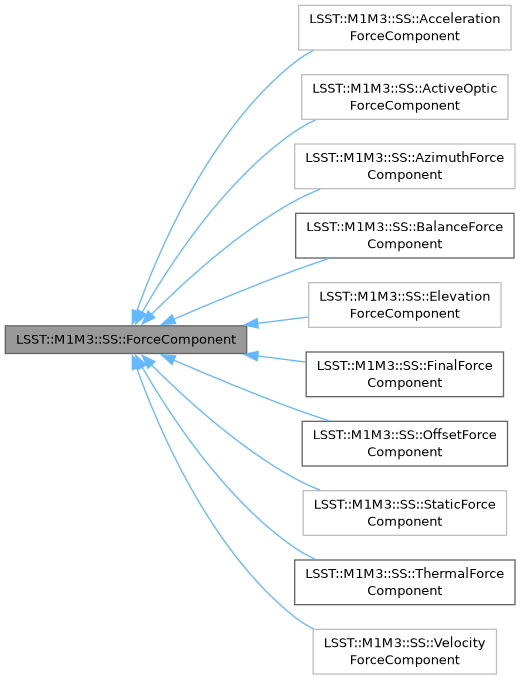

Inheritance diagram for LSST::M1M3::SS::ForceComponent:

Public Member Functions
	ForceComponent (const char *name, ForceComponentSettings *forceComponentSettings)
	Construct ForceComponent.
const char *	getName ()
	Returns force component name.
bool	isInitialising ()
	Returns true if the force component is being initialised.
bool	isEnabled ()
	Returns true if the force component is enabled.
bool	isDisabling ()
	Returns true if the force component is being disabled.
bool	isActive ()
	Returns true if the force compoment is active - shall be calculated.
void	enable ()
	Enable the force component.
void	disable ()
	Disable the force component.
virtual void	postEnableDisableActions ()=0
	Called after enable/disable changes.
void	update ()
void	reset ()

Protected Member Functions
virtual void	postUpdateActions ()=0
	Called after update to forces.

Protected Attributes
float	xCurrent [FA_X_COUNT]
	measured actuator current X force
float	yCurrent [FA_Y_COUNT]
	measured actuator current Y force
float	zCurrent [FA_Z_COUNT]
	measured actuator current Z force
float	xTarget [FA_X_COUNT]
	target actuator X force
float	yTarget [FA_Y_COUNT]
	target actuator Y force
float	zTarget [FA_Z_COUNT]
	target actuator Z force
float	xOffset [FA_X_COUNT]
	difference (error) between current and target X force
float	yOffset [FA_Y_COUNT]
	difference (error) between current and target Y force
float	zOffset [FA_Z_COUNT]
	difference (error) between current and target Z force

Detailed Description

Abstract parent class of all force components.

Forces acting on mirror are calculated as sum of 6 scalar forces (lateral forces in x,y and z direction and rotational forces (moments) around x,y and z axis). Individual actuators forces are summed in FinalForceComponent. Considered forces and demands are:

• AccelerationForceComponent
• ActiveOpticForceComponent (Z direction only)
• AzimuthForceComponent
• BalanceForceComponent
• ElevationForceComponent
• OffsetForceComponent
• StaticForceComponent
• ThermalForceComponent
• VelocityForceComponent

Force component can be enabled or disabled. When it is disabled, its contribution is scaled linearly to zero to prevent overstressing the mirror. Commanding of the enabled/disabled states and checking if the forces are enabled before being applied is performed in the ForceController class.

Constructor & Destructor Documentation

ForceComponent()

LSST::M1M3::SS::ForceComponent::ForceComponent	(	const char *	name,
		ForceComponentSettings *	forceComponentSettings )

Construct ForceComponent.

Parameters

name	force component name
forceComponentSettings

Here is the caller graph for this function:

Member Function Documentation

disable()

void LSST::M1M3::SS::ForceComponent::disable

(

)

Disable the force component.

Starts to gradually scales force contribution to

getName()

const char * LSST::M1M3::SS::ForceComponent::getName ( )

inline

Returns force component name.

Returns

force component name

isActive()

bool LSST::M1M3::SS::ForceComponent::isActive ( )

inline

Returns true if the force compoment is active - shall be calculated.

Returns

true if the force component is either enabled or disabling (scaling back to 0)

isDisabling()

bool LSST::M1M3::SS::ForceComponent::isDisabling ( )

inline

Returns true if the force component is being disabled.

Returns

true if the force component is being disabled

isEnabled()

bool LSST::M1M3::SS::ForceComponent::isEnabled ( )

inline

Returns true if the force component is enabled.

Returns

true if the force component is enabled

Here is the caller graph for this function:

isInitialising()

bool LSST::M1M3::SS::ForceComponent::isInitialising ( )

inline

Returns true if the force component is being initialised.

Returns

true if the force component is being initialised

postEnableDisableActions()

virtual void LSST::M1M3::SS::ForceComponent::postEnableDisableActions ( )

pure virtual

Called after enable/disable changes.

Publish a state change for the component Pure virtual, needs to be overriden in children.

Implemented in LSST::M1M3::SS::AccelerationForceComponent, LSST::M1M3::SS::ActiveOpticForceComponent, LSST::M1M3::SS::AzimuthForceComponent, LSST::M1M3::SS::BalanceForceComponent, LSST::M1M3::SS::ElevationForceComponent, LSST::M1M3::SS::FinalForceComponent, LSST::M1M3::SS::OffsetForceComponent, LSST::M1M3::SS::StaticForceComponent, LSST::M1M3::SS::ThermalForceComponent, and LSST::M1M3::SS::VelocityForceComponent.

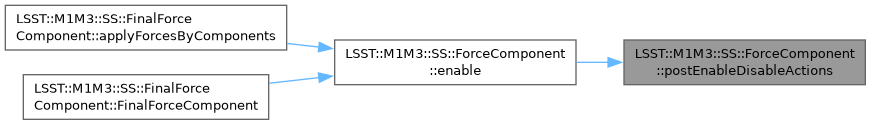

Here is the caller graph for this function:

postUpdateActions()

virtual void LSST::M1M3::SS::ForceComponent::postUpdateActions ( )

protectedpure virtual

Called after update to forces.

Check for forces that need to be clipped. Update SAL. Pure virtual, needs to be overriden in children.

Implemented in LSST::M1M3::SS::AccelerationForceComponent, LSST::M1M3::SS::ActiveOpticForceComponent, LSST::M1M3::SS::AzimuthForceComponent, LSST::M1M3::SS::BalanceForceComponent, LSST::M1M3::SS::ElevationForceComponent, LSST::M1M3::SS::FinalForceComponent, LSST::M1M3::SS::OffsetForceComponent, LSST::M1M3::SS::StaticForceComponent, LSST::M1M3::SS::ThermalForceComponent, and LSST::M1M3::SS::VelocityForceComponent.

---

The documentation for this class was generated from the following files:

• ForceComponents/ForceComponent.h
• ForceComponents/ForceComponent.cpp
