Abstract interface for FPGA. More...

#include <IFPGA.h>

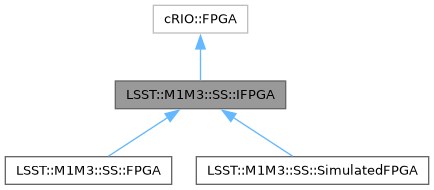

Inheritance diagram for LSST::M1M3::SS::IFPGA:

[legend]

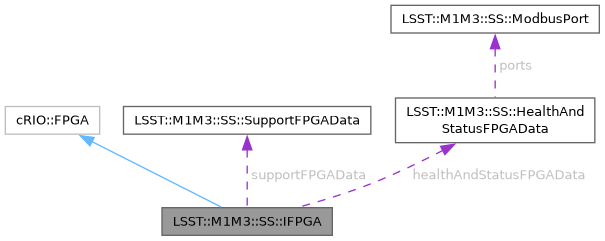

Collaboration diagram for LSST::M1M3::SS::IFPGA:

[legend]

Public Member Functions
uint16_t	getTxCommand (uint8_t bus) override

uint16_t	getRxCommand (uint8_t bus) override

uint32_t	getIrq (uint8_t bus) override

SupportFPGAData *	getSupportFPGAData ()
	Call after pullTelemetry to retrieve telemetry data.

HealthAndStatusFPGAData *	getHealthAndStatusFPGAData ()
	Call after pullHealthAndStatus to retrieve HealthAndStatus data.

virtual void	waitForOuterLoopClock (uint32_t timeout)=0
	Wait for outer loop clock interrupt for synchronization between C++ and FPGA code.

virtual void	ackOuterLoopClock ()=0
	Acknowledge (clear interrupt 0) outer loop clock.

virtual void	waitForPPS (uint32_t timeout)=0
	Waits for Peer-to-Peer Synchronization interrupt (10).

virtual void	ackPPS ()=0
	Acknowledge (clear) Peer-to-Peer Synchronization interrupt.

virtual void	waitForModbusIRQs (uint32_t warning_timeout, uint32_t error_timeout)=0
	Wait for ModBus interrupts.

virtual void	ackModbusIRQs ()=0
	Acknowledge ModBus interrupt reception.

virtual void	pullTelemetry ()=0
	Retrieve telemetry data.

virtual void	pullHealthAndStatus ()=0
	Retrieve Health&Status data.

virtual void	writeTimestampFIFO (uint64_t timestamp)=0
	Write current timestamp value into timestampFIFO.

virtual void	readU8ResponseFIFO (uint8_t *data, size_t length, uint32_t timeoutInMs)=0

virtual void	writeHealthAndStatusFIFO (uint16_t request, uint16_t param=0)=0
	Requests HealthAndStatus data.

virtual void	readHealthAndStatusFIFO (uint64_t *data, size_t length, uint32_t timeoutInMs=10)=0
	Copy HealthAndStatus data into supplied data buffer.

virtual void	readRawAccelerometerFIFO (uint64_t *raw, size_t samples)=0
	Reads raw accelerometer FIFO.

void	setPower (bool aux, bool network)
	Sets all auxiliary and network buses power (A-D).

void	setPower (const bool aux[4], const bool network[4])
	Sets aux and network power.

Static Public Member Functions
static IFPGA &	get ()

Protected Attributes
SupportFPGAData	supportFPGAData

HealthAndStatusFPGAData	healthAndStatusFPGAData

Detailed Description

Abstract interface for FPGA.

Both real FPGA and simulated class implements this. Singleton.

❗ Please see LSST::M1M3::SS::FPGA class for communication details.

See also: FPGA; https://github.com/lsst-ts/ts_m1m3SupportFPGA

Member Function Documentation

◆ ackModbusIRQs()

virtual void LSST::M1M3::SS::IFPGA::ackModbusIRQs ( )

pure virtual

Acknowledge ModBus interrupt reception.

Interrupt can be generated (raised on the FPGA side) again after being acknowledged.

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ ackOuterLoopClock()

virtual void LSST::M1M3::SS::IFPGA::ackOuterLoopClock ( )

pure virtual

Acknowledge (clear interrupt 0) outer loop clock.

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ ackPPS()

virtual void LSST::M1M3::SS::IFPGA::ackPPS ( )

pure virtual

Acknowledge (clear) Peer-to-Peer Synchronization interrupt.

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ getHealthAndStatusFPGAData()

HealthAndStatusFPGAData * LSST::M1M3::SS::IFPGA::getHealthAndStatusFPGAData ( )

inline

Call after pullHealthAndStatus to retrieve HealthAndStatus data.

Returns: HealthAndStatus data

◆ getSupportFPGAData()

SupportFPGAData * LSST::M1M3::SS::IFPGA::getSupportFPGAData ( )

inline

Call after pullTelemetry to retrieve telemetry data.

Returns: telemetry data

◆ pullHealthAndStatus()

virtual void LSST::M1M3::SS::IFPGA::pullHealthAndStatus ( )

pure virtual

Retrieve Health&Status data.

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ pullTelemetry()

virtual void LSST::M1M3::SS::IFPGA::pullTelemetry ( )

pure virtual

Retrieve telemetry data.

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ readHealthAndStatusFIFO()

virtual void LSST::M1M3::SS::IFPGA::readHealthAndStatusFIFO	(	uint64_t *	data,
		size_t	length,
		uint32_t	timeoutInMs = 10 )

pure virtual

Copy HealthAndStatus data into supplied data buffer.

Parameters

data	memory data will be copied
length	buffer length. Must match FPGA defined memory size (64)
timeoutInMs	timeout in microseconds

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ readRawAccelerometerFIFO()

virtual void LSST::M1M3::SS::IFPGA::readRawAccelerometerFIFO	(	uint64_t *	raw,
		size_t	samples )

pure virtual

Reads raw accelerometer FIFO.

Waits for new data if no data are available.

Parameters

raw	8 raw accelerometer values. Data are stored as 24 bits fixed points (5 bits integer part) in uint64_t. So actually on 3 bytes out of 64 are used - that copies NI interface for accessing fixed points
samples	number of samples

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ readU8ResponseFIFO()

virtual void LSST::M1M3::SS::IFPGA::readU8ResponseFIFO	(	uint8_t *	data,
		size_t	length,
		uint32_t	timeoutInMs )

pure virtual

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ setPower() [1/2]

void IFPGA::setPower	(	bool	aux,
		bool	network )

Sets all auxiliary and network buses power (A-D).

Parameters

aux	auxiliary buses power (true = on)
network	network buses power (true = on)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setPower() [2/2]

void IFPGA::setPower	(	const bool	aux[4],
		const bool	network[4] )

Sets aux and network power.

Parameters

aux[4]	new auxiliar power, buses A-D
network[4]	new network power, buses A-D

◆ waitForModbusIRQs()

virtual void LSST::M1M3::SS::IFPGA::waitForModbusIRQs	(	uint32_t	warning_timeout,
		uint32_t	error_timeout )

pure virtual

Wait for ModBus interrupts.

The interrupt is generated when ModBus command 0x7 is processed.

Parameters

warning_timeout	warning timeout for IRQ call in milliseconds
error_timeout	after that time (in millisecond) expires, and error will be thrown

Exceptions

NiError	on NI error
std::runtime_error	on timeout

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ waitForOuterLoopClock()

virtual void LSST::M1M3::SS::IFPGA::waitForOuterLoopClock ( uint32_t timeout )

pure virtual

Wait for outer loop clock interrupt for synchronization between C++ and FPGA code.

The interrupt (0) is raised every 20 ms inside FPGA code (OuterLoop/OuterLoopClock.vi).

Parameters

timeout after that time (in millisecond) expires, and error will be thrown

Exceptions

NiError on NI error

See also: writeTimestampFIFO

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ waitForPPS()

virtual void LSST::M1M3::SS::IFPGA::waitForPPS ( uint32_t timeout )

pure virtual

Waits for Peer-to-Peer Synchronization interrupt (10).

The interrupt is raised in Timestamp/Timestamp.vi and signals FPGA is ready to read peer time offset from TimestampControlFIFO.

Parameters

timeout call timeout in milliseconds. TimeStamp VI introduces 1 milliseconds delay between successive waits for interrupt, so this value shall be larger than 1000.

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ writeHealthAndStatusFIFO()

virtual void LSST::M1M3::SS::IFPGA::writeHealthAndStatusFIFO	(	uint16_t	request,
		uint16_t	param = 0 )

pure virtual

Requests HealthAndStatus data.

Response can be read calling readHealthAndStatusFIFO method.

Request types are:

1 return single U64 value at address param
2 return full HealthAndStatus memory. Size is specified when creating HealthAndStatus memory.
3 clear health and status memory

Parameters

request	request type, see above
param	relevant only for request 1

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

◆ writeTimestampFIFO()

virtual void LSST::M1M3::SS::IFPGA::writeTimestampFIFO ( uint64_t timestamp )

pure virtual

Write current timestamp value into timestampFIFO.

Shall be called after PPS interrupt is received. See NI forum for details.

Parameters

timestamp current system timestamp in nanoseconds

Exceptions

NiError on NI error

Implemented in LSST::M1M3::SS::FPGA, and LSST::M1M3::SS::SimulatedFPGA.

The documentation for this class was generated from the following files:

FPGA/IFPGA.h
FPGA/IFPGA.cpp
