LSST::M1M3::SS::RaisedBusList Class Reference

Inheritance diagram for LSST::M1M3::SS::RaisedBusList:

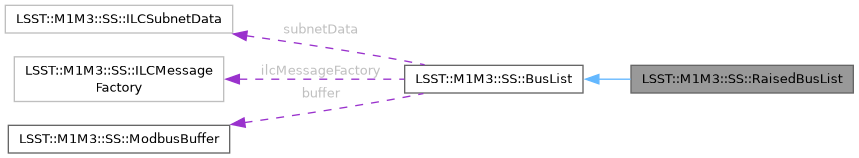

Collaboration diagram for LSST::M1M3::SS::RaisedBusList:

Public Member Functions
	RaisedBusList (ILCSubnetData *subnetData, ILCMessageFactory *ilcMessageFactory)
void	buildBuffer () override
	(Re)-build message send to FPGA.
void	update () override
	Called when update to buffer is required.
Public Member Functions inherited from LSST::M1M3::SS::BusList
	BusList (ILCSubnetData *subnetData, ILCMessageFactory *ilcMessageFactory)
int32_t	getLength ()
uint16_t *	getBuffer ()
int32_t *	getExpectedHPResponses ()
int32_t *	getExpectedFAResponses ()
int32_t *	getExpectedHMResponses ()

Additional Inherited Members
Protected Member Functions inherited from LSST::M1M3::SS::BusList
void	startSubnet (uint8_t subnet)
	Writes command to start a subnet message on the bus.
void	endSubnet ()
	Ends subnet.
Protected Attributes inherited from LSST::M1M3::SS::BusList
ILCSubnetData *	subnetData
	Status of messages on a subnet.
ILCMessageFactory *	ilcMessageFactory
ModbusBuffer	buffer
	Buffer holding data send to FPGA Command FIFO.
int32_t	expectedHPResponses [HP_COUNT]
int32_t	expectedFAResponses [FA_COUNT]
int32_t	expectedHMResponses [HP_COUNT]
int32_t	subnetStartIndex

Member Function Documentation

buildBuffer()

void RaisedBusList::buildBuffer ( )

overridevirtual

(Re)-build message send to FPGA.

Should be called when external conditions changes - e.g. when an ILC is disabled.

Note

called from ILC::buildBusLists()

Reimplemented from LSST::M1M3::SS::BusList.

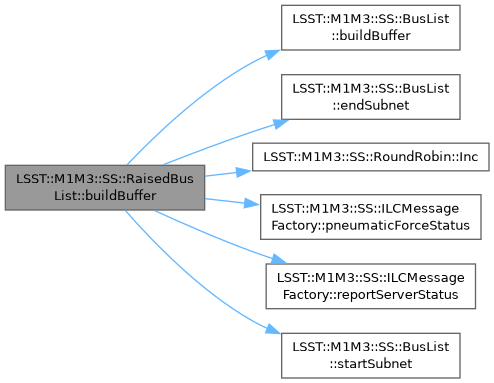

Here is the call graph for this function:

update()

void RaisedBusList::update ( )

overridevirtual

Called when update to buffer is required.

Shall write new values to ILC commands etc.

Reimplemented from LSST::M1M3::SS::BusList.

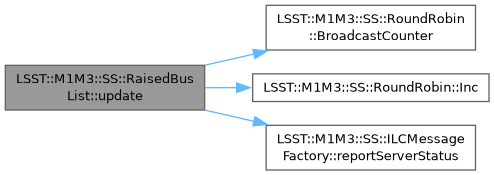

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• BusLists/RaisedBusList.h
• BusLists/RaisedBusList.cpp
